Lightweight Maneuverable Self Propelled Road Marking Machine Easy Operate

Name: Lightweight Maneuverable Self Propelled Road Marking Machine Easy Operate
Brand: HUA QUN
Price: 1 USD

Buy cheap Lightweight Maneuverable Self Propelled Road Marking Machine Easy Operate product

Brand Name : HUA QUN

Model Number : TW-A

Certification : ISO 9001

Place of Origin : China

MOQ : 1 unit

Price : Pending

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 sets per month

Delivery Time : 3 days

Packaging Details : 1 unit/ Wooden box

Product Name : Self-propelled Road Marking Machine

Glass beads capacity : 25kgs

paint capacity : 120kgs

Weight of Machine : 230 kg

Features : Hand-Push

Dimension : 1400x1050x1050mm

Performance : Operate easy

Power engine : Honda 5.5 HP gasoline engine

Contact Now

Thermoplastic Hand Push Marking Machine for Lightweight and Maneuverable Design

Product Introduction

Nowadays, as labor costs constantly increasing, the design ideas of "Save energy, Improve efficiency, Reduce labor intensity" runs through HUA QUN design solution. Our self-propelled road marking machine is as the upgrade product of hand push road marking machine.

For traditional self-propelled road marking machines, as LPG tank is too taller than operator that their sight is blocked. Our new model overcomes this disavantage by rearranging the hydraulic system and mechanical system, which makes the machine structure more reasonable and user-friendly.The most important point is that the toatal weight of the machine is 50kg lighter.

Technical Parameter

Product Name	Self-propelled road marking machine
Outer dimensions(L×W×H)	1400×1050×1050mm
Total weight of machine	230kg
Capacity of glass beads case	25kg
Capacity of stirring tank	120kg
Power engine	Honda 5.5 HP gasoline engine
Walking Drive	Hydraulic pressure
Walking speed	0-5km/h
Lineation speed	>800m/h(depending on paint condition and line thickness
Gradient	30%(about 16.5°)
Glass beads spreading method	Flexible Shaft Driven, Automatically Clutch
Heating method	Liquefied petroleum gas

Features

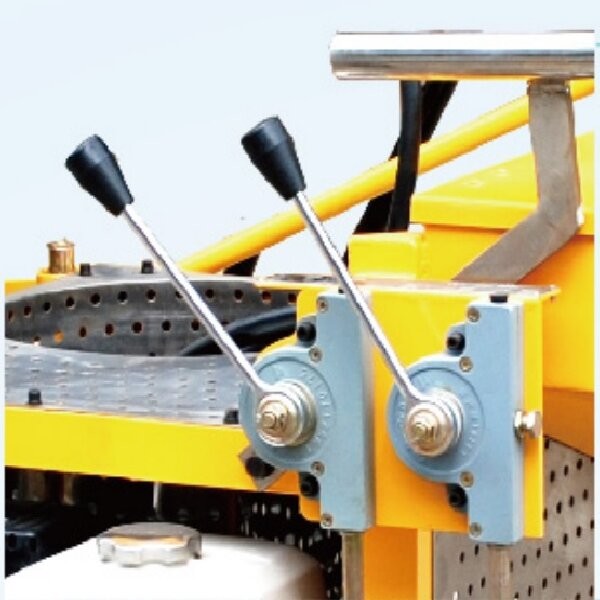

Convenient Speed Control System

This machine with hydraulic transmission, can walk forward and backward automatically, mark the line faster and more effective.

Lightweight Maneuverable Self Propelled Road Marking Machine Easy Operate

Product Tags:

Lightweight Self Propelled Road Marking Machine

Maneuverable Self Propelled Road Marking Machine

Lightweight Maneuverable Self Propelled Road Marking Machine Easy Operate Images
