Thermoplastic Pavement Marking Screed Applicator Machine For Road Line Marking
Thermoplastic road marking machine is akind of simply easy-used small size marking machine which iswidely used in China and other developing countries or areas.Using special designed power system to reduce laborintensity.They have the advantages of low investment, lightweight,Easy loading, easy operation and maintenance, suitable forthe marking work with thermoplastic paints in all kinds of roadsvehicle parks, schools, factories, etc.
Avantages:
Thermoplastic Road Marking Machine is used for marking reflective lines (straight lines, dotted lines, direction arrows, letters and symbols) on high way, city street, parking lot, factory and warehouse. It have two models of Hand Push and automatic one(engine driven).
Main Features of Thermoplastic Road Marking Machine:
1.More stable:
Through gravity adjustment, widened front wheel, the Marking Machine is more stable than traditional ones when marking 450mm zebra crossing.
2.Lighter:
Through repeatedly gravity test, rechoose new shaft, the marking machine is much lighter, reduced operator’s working intensity. So the marking works become easier and more effectively.
3.Easy to operate:

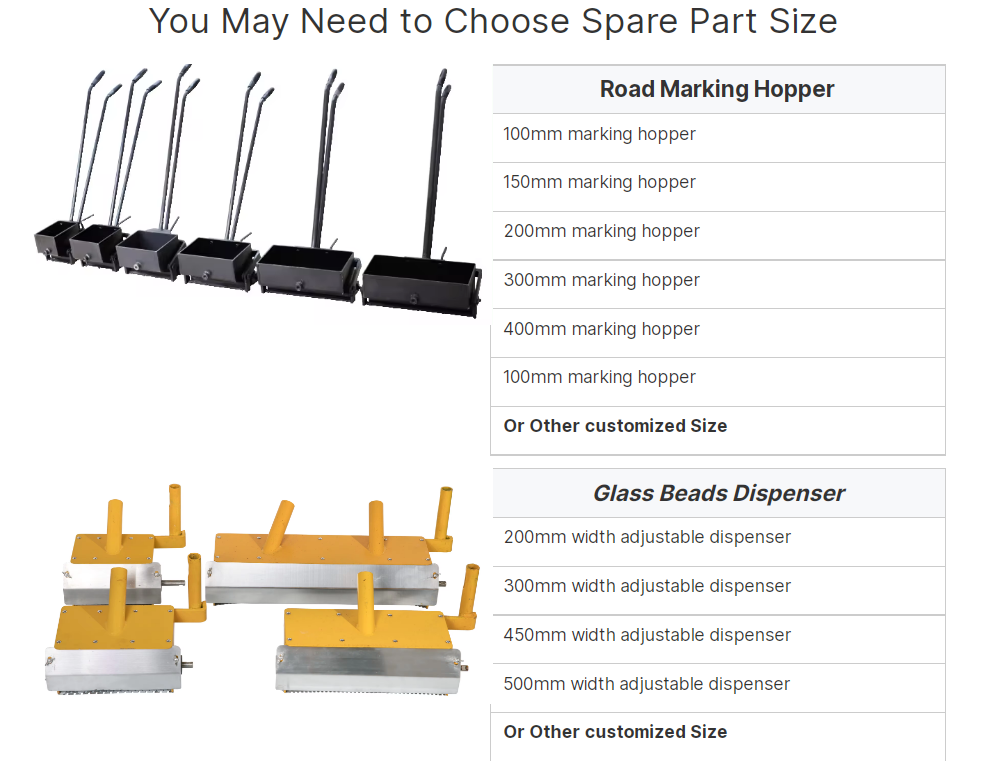

Marking hopper’s operating range minimized from 300mm to 200mm, more accurately , easier to control, therefore such problems as slow hopper withdrawal and uneven finishing mark edge are solved. A multi-point sliding block pressing structure is used to avoid material leakage witch often occurs to similar products due to the two tightly pressed sides and large deformation in the middle of product alik
| Cover | Thermoplastic |
| Engine | Manual one, no engine |
| Dimensions | 1200 mm *900 mm*900mm |
| Output capacity | About 1500m/h for standard single continuous line |
| Application Width | 100mm,150mm,200mm |
| Max. working temperature | 230℃ |
| Line types | Continuous, dual, dashed, die shoes provided for applications of 100mm, 150mm,200mm (double line) |
Tank capacity for
thermoplastic, kg | 105kg |
| Function | Keep melted paint warm and mark line. |
| Total weight of machine | 125kg |
| Capacity of glass beads box | 25kg |
| Bead dispensing method | Gear Driven, Automatically Clutch |
| CBM | 1.5 |
