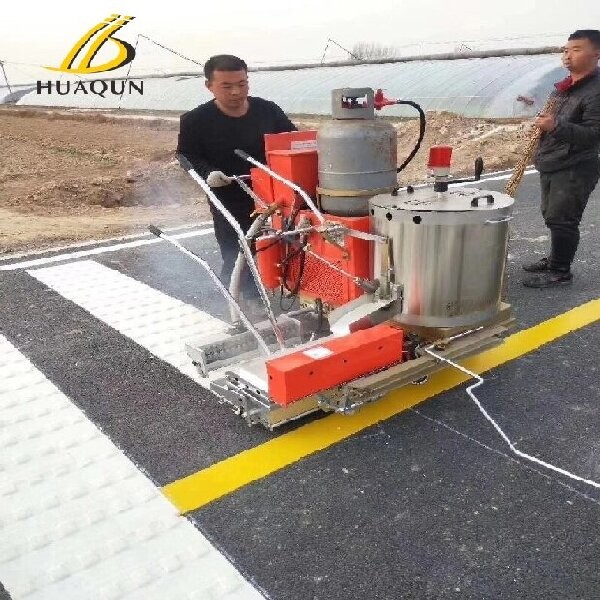

Advanced Thermoplastic Hand Push Marking Machine for Convex Traffic Markings
Product Introduction:
CKM Thermoplastic road marking machine has latest German aptitude program controller and user friendly control panel to finish convex markings shape, convex height and convex spaang can meet different needs of various road. And completely confirm to the international vibrating and reflective standards. And with stronger deformation resistance, abrasion resistance and shock resistance etc.
Technical Parameters:
| Type | CKM Thermoplastic Convex Road Marking Machine |
| Dimension | 1360x980x1250mm |
| Weight | 265 kg |
| Capacity of container | 120kg (60L) |
| Glass beads container volume | 10kg |
| Engine | Honda 5.5HP four-stroke air-cooled gasoline engine with hand starting |
| Fuel | LPG gas |
| Driving system | Imported oil pressurized continuously variable speed transmission system(HTS) with automatic brake device that can freely go ahead, back off and stop. |
| Driving speed | Forward 0-4km/h, back off 0-3.2km/h |
| Driver Speed | 1-8km/hour |
| Maximum climbing capacity | 15 º |
| The convex height | Convex height is 3-5mm, basal line can be adjusted through hanger frame |
| Marking width | Change different specifications of shoe( 150, 200, 300, 400, 450mm) according to the need of the project |
Sport Recommended:
• Express way: edge line of express way, diversion line, decelerating line near the toll booth and tums in the road.
• Edge line of the city road, double amber line, cross raod, sharp turn, entrance and exit of ramp, decelerating line in front of the gates of schools, enterprises and institutions.
• National, provincial and country roads: continuous declivity slope section, sharp turn preparation section, deceleration line before divaricating road edge and single amber line in all sections.
Features of Fixing
Compulsory deceleration, reminding by shake, glistening in rainy days and antislippery.
• Compulsory deceleration, reminding the driver to slow down in dangerous section such as turns and slopes;
• Reminding by shakes: remind and warm the driver who in fatigue or absent-mindedly.
• Glistening in rainy days: make driving safe with clearer visuality
• Anti-slippery: magnifty the friction with road and slow down the vehicle
Major Functions
When the driver is driving in fatigue or absent--mindedly, the car shakes when it passes over the prominent lines giving out harsh noise. As a result, the driver comes back to sense promptly and re-adjusts the direction of the car thus preventing accidents. The prominent lines have better three-dimensional reflection of light so that the driver can tell the direction and lane in rainy days. The mark line guarantee the security of drivers and provide compulsory deceleration and anti-slippery.
After Effect
According to the international case statistical data, the traffic accidents will be reduced by more than 30% after promient mark lines are adopted and casualties and economic losses are reduced greatly. As a result experts appeal to the use of this kind of mark line as the standard line for traffic safety.
