Highway Thermoplastic Paint C5 Resin Traffic Line Paint White And Yellow

Hot Melt Thermoplastic Road Marking Paint C5 Resin White and Yellow

Thermoplastic Road Marking Paint is a kind of road marking material, uses thermoplasticity petroleum resin as binder and qualified pigment filler and additive.Thermoplastic road marking material is with advantages of fast dry, easy execute, high reflection, and long service life.

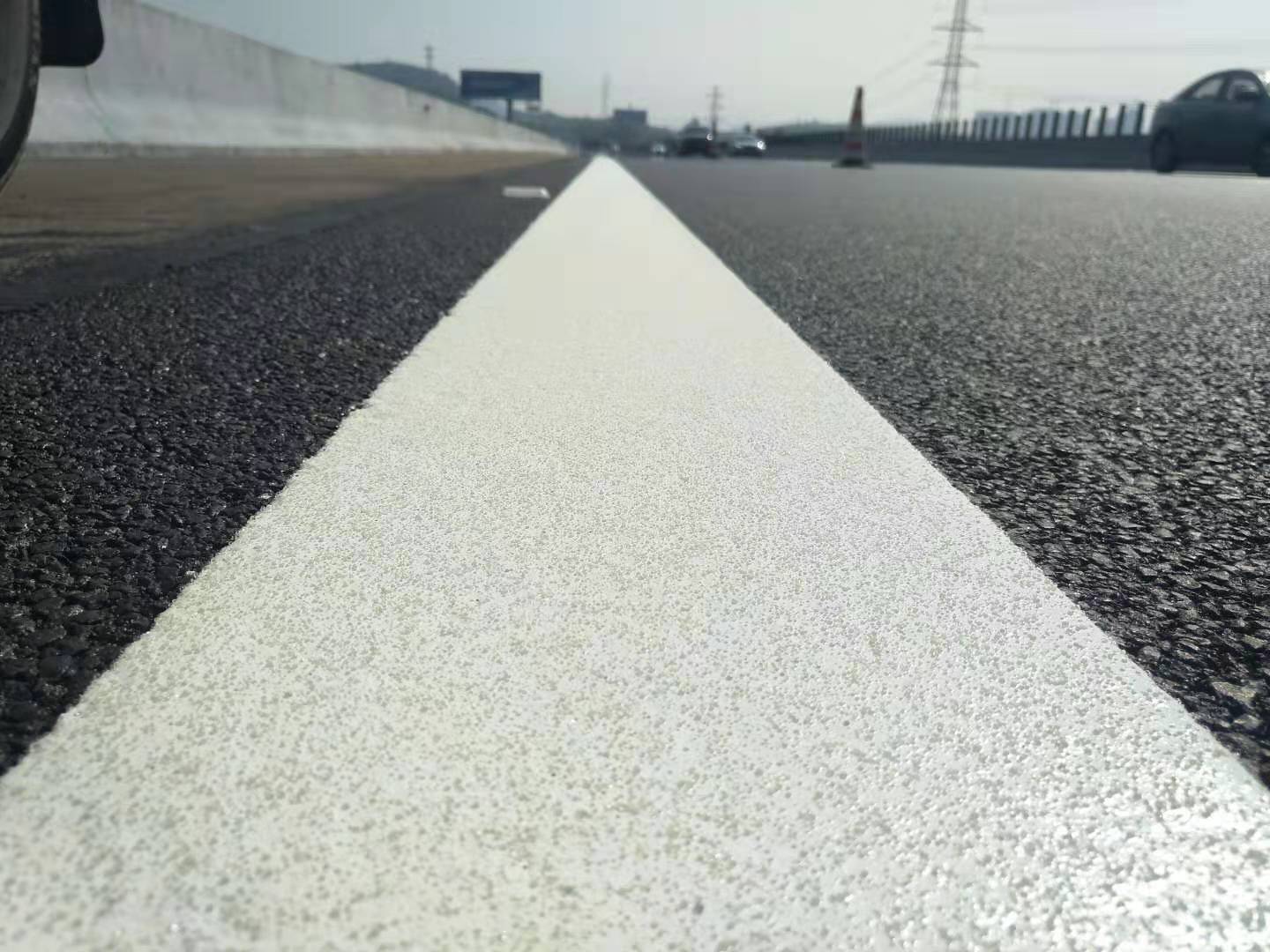

Thermoplastic marking paint is mainly used on road and highways. The thickness of this marking paint is (1.0 ~ 2.5) mm. The paint is mixed with reflective glass beads, or drop on reflective glass beads while marking construction. This kind of marking line has good night-time reflective performance and long service life. It is estimated according to the demand for various road marking coatings for the construction of large highways with traffic flow. It depends on the quality of the coating itself and generally can reach (2 ~ 3 years. The application of thermoplastic paint requires special heating equipment. When repainting the old marking line, the thicker old coating must be removed before applying.

Features

Strong adhesion strength:Resin content is reasonable , and it was added special rubber elastomer in the primer in the primer , so it has strong adhesion strength, if the construction technique is reasonable, no peeling off. Good cracking resistance:Thermoplastic Paint marking is cracking resistance than normal paint. Bright color:The paint adopts the color of the highest level with reasonable proportion, so it has good weather resistance and will not change color if long term exposure. High usage ratio:The major feature of paint is low density , big volume and high usage ratio. Good dirt resistance:The dosage and quality of PE wax are the key point of impacting the dirt resistance.we use the high quality PE wax from Germany.

① The marking line should be applied after the primer is dried.If marking the line before dried primer,the flux will penetrate the unhardened coating film and cause bubbles.

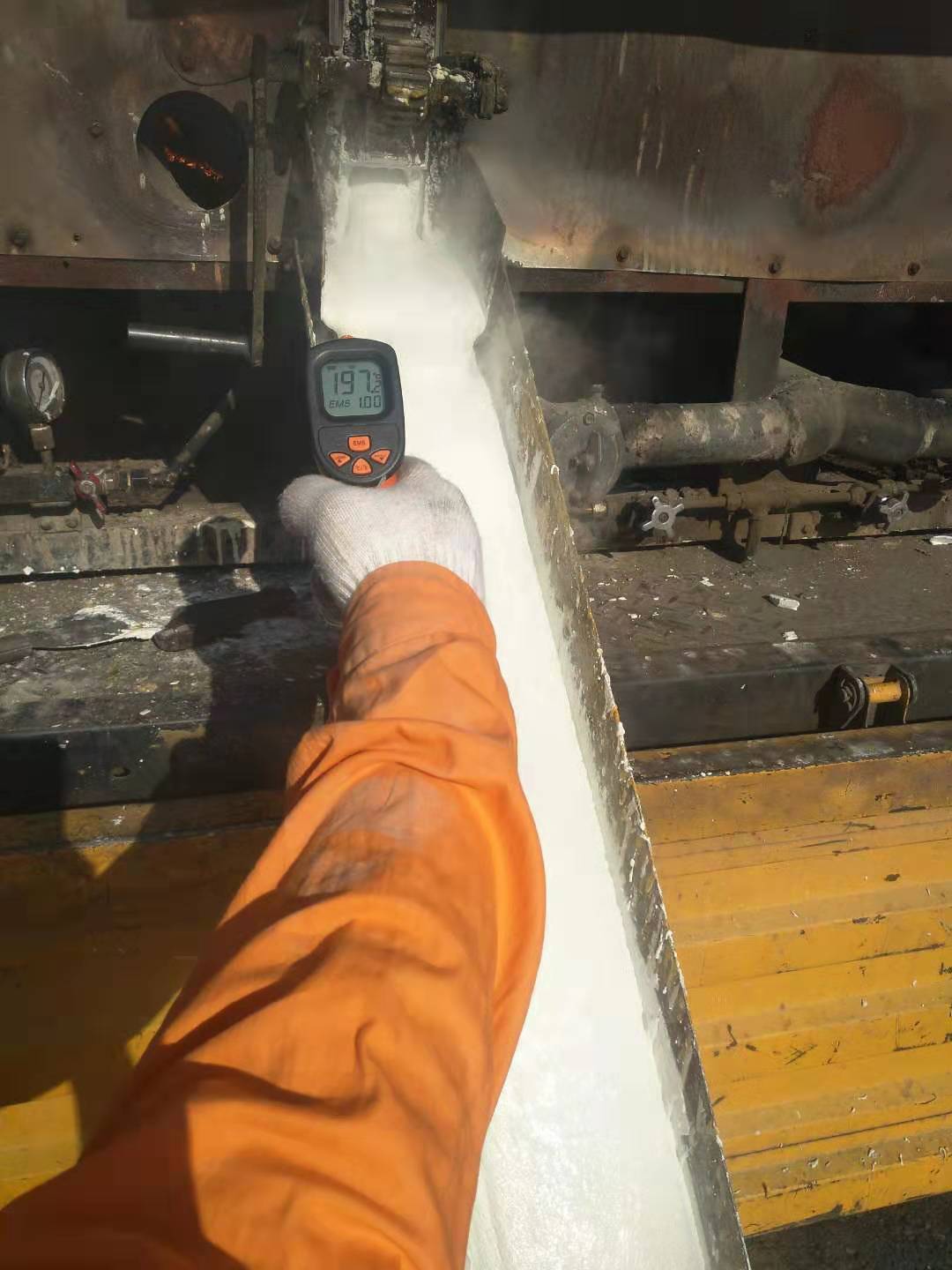

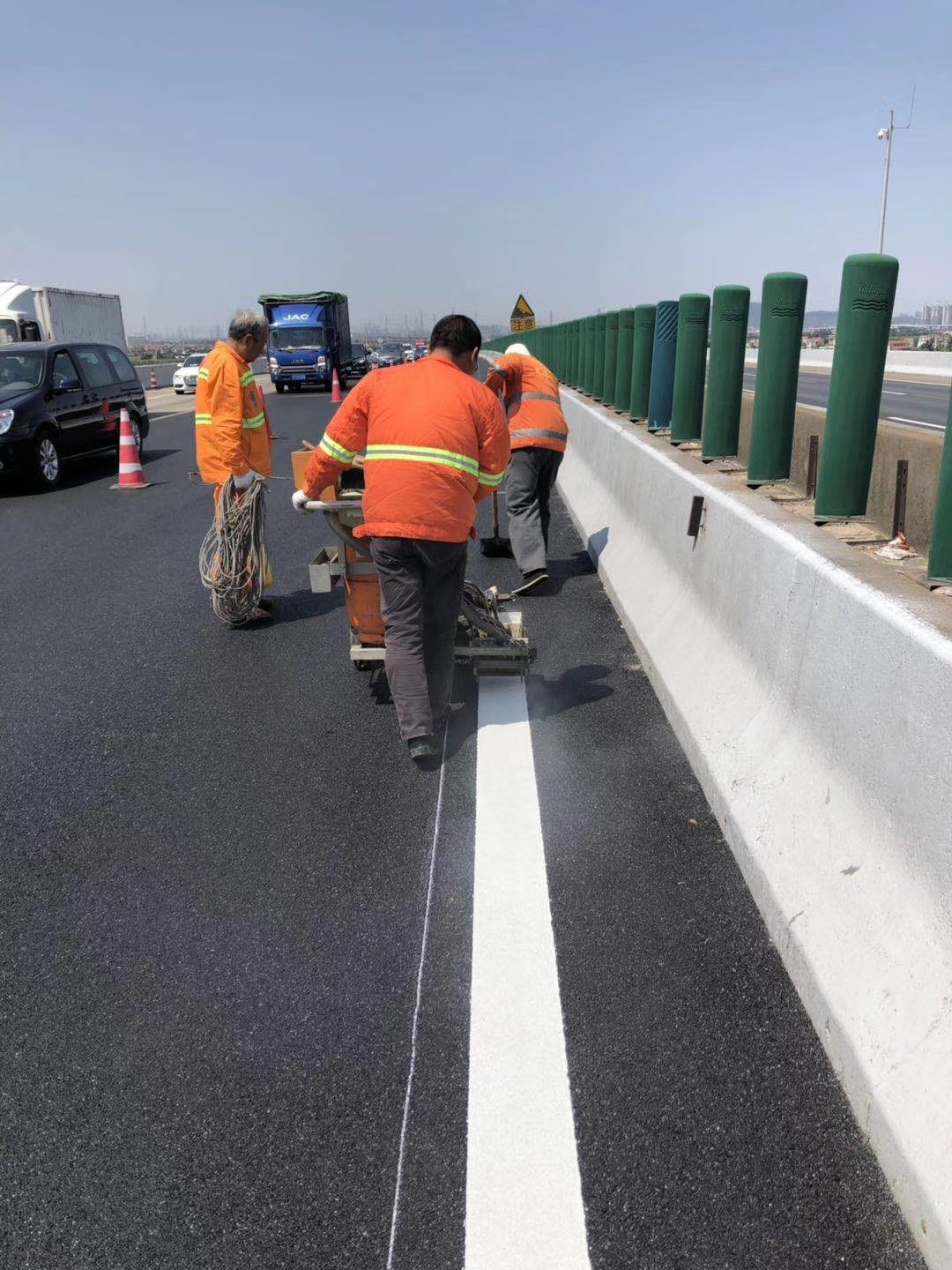

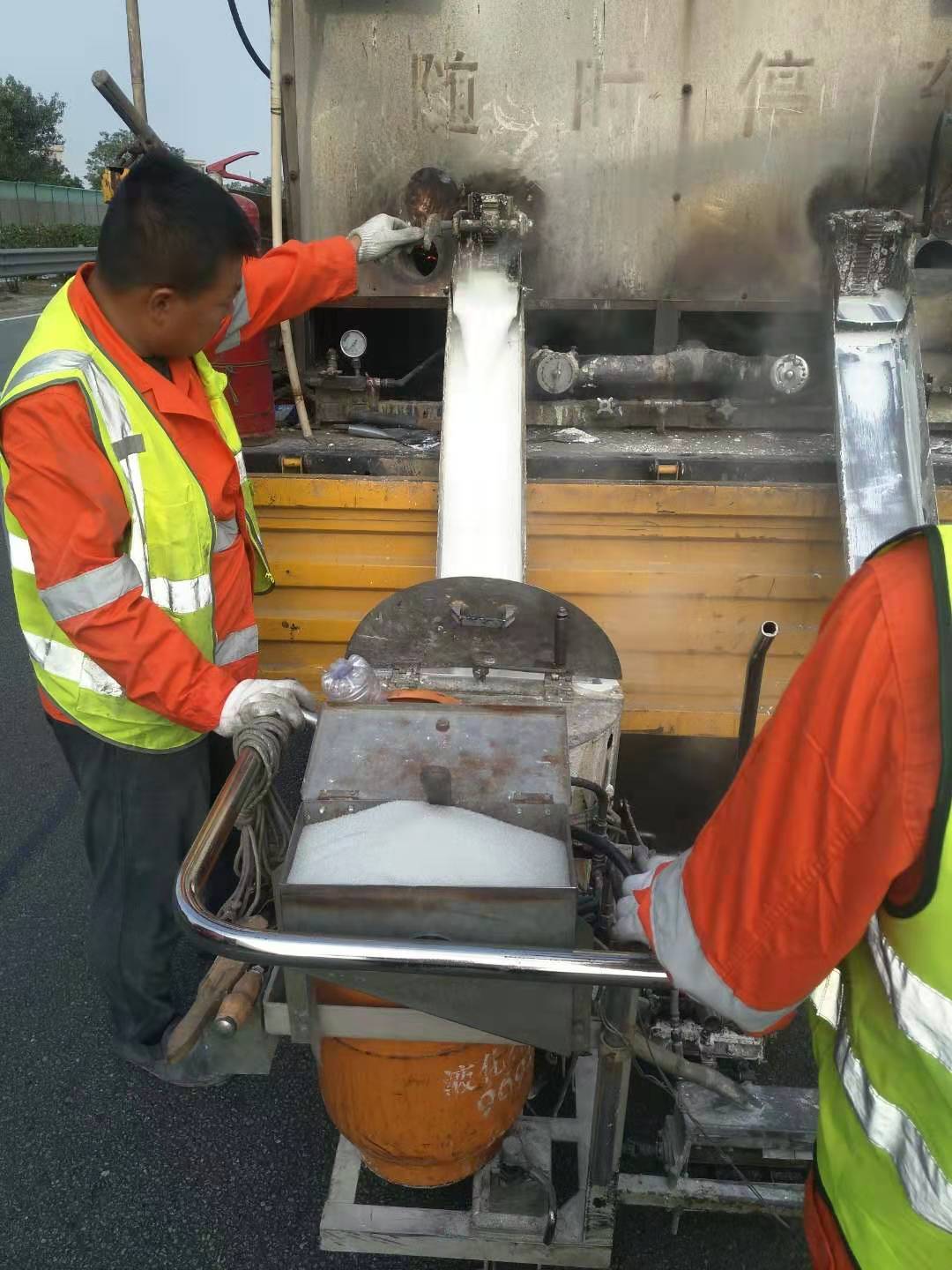

②Thermoplastic paint is solid powder at normal temperature. Put the paint into the melting Kneader,and stir while melting.The temperature in the pot should be controlled between 200 ° C and 210 ° C. After the paint melting and flowing, put it into the insulation melting hopper of the marking machine. Then molten coating is introduced to the scribing hopper and kept the material molten. There is a pre-marking machine to mark the position before marking, and the primer is applied by applicator at the application position indicated by the design icon. After the primer is completely dry, apply the marking paint. When starting marking the line, the marking hopper should be placed on the road,because there is a certain gap between the line bucket and the ground, when the line is moving forward, a neat marking line is scraped by automatic flow. The glass bead spreader can automatically and evenly spread a layer of reflective glass beads on the marking line.

③ In order to ensure the highest reflection at night, the glass beads should be sprinkled at the same time as the line Experience shows that the diameter of the glass beads sink 60%-70% into the coating film, the reflection effect is the best. If the coating temperature is too high, the glass beads are spread quickly, the glass beads will fully sink into the coating; the coating temperature is low, the glass beads are spread slowly, the coating is close to curing, the glass beads cannot be well fixed on the coating, easily fall off, and the reflective effect is bad.

④The marking line solidification. Based on the standpoint of adhesiveness and trimming, the coating film is preferably cooled,naturally. When you have to use speed-limiting cooling, you should wait a moment after coating and water it.
