Description
Thermoplastic road marking paint consists of resin, EVA, PE wax, fillers materials, glass bead, which is solid powder condition at normal temperature, If is is heated to 180-200 degrees by heat fusing pot under construction, it will appears flowage, coating pot under construction, it will appears flowage, coating the paint to the road surface will form hard film,It has full line type,strong wearing resistance and other flowage, Sprinkling reflecting glass micro beads on the surface under construction, it has good reflecting effect at night , it is widely applied in highway and road. According to the environment used and the different construction requirements,we can supply different types of paint for our customer option.
Application
Hot melt reflective marking paint is mainly used for more than 2 level of the highway and highway, the marking coating thickness of this paint is (1.0 ~ 2.5) mm, the paint is mixed with reflective glass beads, and in the marking construction, the surface of the reflective glass beads. This marking has good night reflective performance, long service life, according to the traffic flow of large highway construction of all kinds of road marking paint demand estimates, small and the quality of the paint itself, generally up to (2 ~ 3) years. The construction of hot melt coating requires special heating equipment. For the second re-coating of the old marking line, the thicker old coating should be removed before coating.
Construction Mode

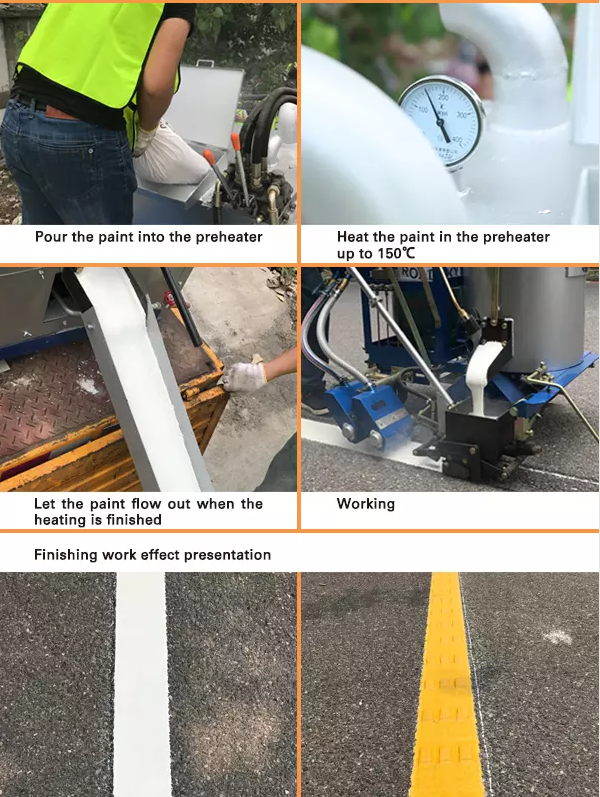

Hot melt marking paint is solid powder at room temperature. During construction, the paint is put into the melting kettle, and the temperature in the kettle is controlled between 180 ° C and 210 ° C. While melting, it is stirred, and after melting, it is put into the insulation melting hopper of the marking car. Melt coating then back into the marking bucket, and heat preservation to keep the material molten state. Before the line is marked by the pre-marking machine position, according to the design drawing indicated on the coating position with the lower coating machine primer. The marking coating can be applied only after the coating agent dries thoroughly. When the scribing begins, the scribing bucket should be placed on the road, because there is a certain gap between the scribing bucket and the ground, when the scribing car ahead, by automatic flow and scrape out a neat line. The glass bead spreader can automatically and evenly spread a layer of reflective glass beads on the marking line.
Technical Date
| Product | Thermoplastic Road Marking Paint |
| Appearance | Powder |
| Color | White, yellow, or customized |
| Main Raw Material | Petroleum resin |
| Intermix glass bead content | 0%∼20% |
| Application temperature | 180°C∼220°C |
| Soft point | 90°C∼125°C |
| Dry speed | ≤3 min (23°C) |
| Theoretical Spreading rate | 4-5 kg/square meter |
| Luminace factor | White:≥75%, yellow: ≥45% |
| Application Method | Screeding, spray, extrusion, structural |
| Storage | Dry, cool, avoid direct sunlight |
| Expiration Date | one year |
Product Process
