Large Capacity Thermoplastic Kneader / Thermoplastic Hydraulic Preheater

Name: Large Capacity Thermoplastic Kneader Thermoplastic Hydraulic Preheater
Brand: HUA QUN
Price: 1 USD

Buy cheap Large Capacity Thermoplastic Kneader / Thermoplastic Hydraulic Preheater product

Brand Name : HUA QUN

Model Number : HQTK

Certification : ISO

Place of Origin : Guangdong China

MOQ : 1 Set

Price : Pending

Payment Terms : L/C, T/T

Supply Ability : 5 set per day

Delivery Time : 5-8 working days

Packaging Details : Packed by wooden box

Name : Thermoplastic Preheater

Total weight of machine : 350-850kg

Hydraulic tank volume : 40 litres

Application : Road marking

Outer dimensions(L*W*H) : depend on model

Capacity of Melting Coating : 300kg/500kg/800kg

Stirring Method : Stirring Method

Contact Now

Large Capacity Thermoplastic Hydraulic Preheater Thermoplastic Kneader

Hydraulic double-cylinder Pre-heater are one of the key machines for the construction of thermoplastic marking at present. With hydraulic drive as well as positive and reverse rotation controlled by multi-way reversing valve, the melting speed gets faster. It is mostly used in the construction of marking at the sites where fast melting is required such as freeway, State Highway, Provincial Highway etc.

No.	Model	HQ1	HQ2	HQ3
1	Outer dimensions	162016201400mm	140014001350mm	750mm1700mm1370mm
2	Empty weight	850kg	550kg	350kg
3	Thickness of boiler bottom	8mm	8mm	8mm
	Diameter of boiler	700mm	550mm	600mm
	Height of boiler	550mm	550mm	550mm
	Capacity of paint	400kg*2	250kg*2	300kg/400kg
4	Agitator rotating speed	0-80r/min	0-80r/min	0-80r/min
5	Thickness of outer frame(stainless steel )	2mm	2mm	2mm
6	Capacity of hydraulic oil tank	60L	60L	60L
7	Diesel engine power	12KW (16HP)	7 HP	7 HP
8	Engine start method	Electrical(12V), Manual	Electrical(12V), Manual	Electrical(12V), Manual

In the process of marking lines ,the first step is to heat and stir the powdery paint in the preheater until it turns into the liquid paint ,then pours the paint into the marking machine for the marking operation . Since the melting level of the paint has a direct bearing on the quality of marking lines ,the preheater plays an important role among the thermoplastic marking devices and is an essential part for melting paint .

Large Capacity Thermoplastic Kneader / Thermoplastic Hydraulic Preheater

For More Details , Pls Feel Free To Contact :

Linly Liao

Whatsapp/Wechat : +8615218861996

Product Tags:

Thermoplastic Hydraulic Preheater

Large Capacity Thermoplastic Kneader

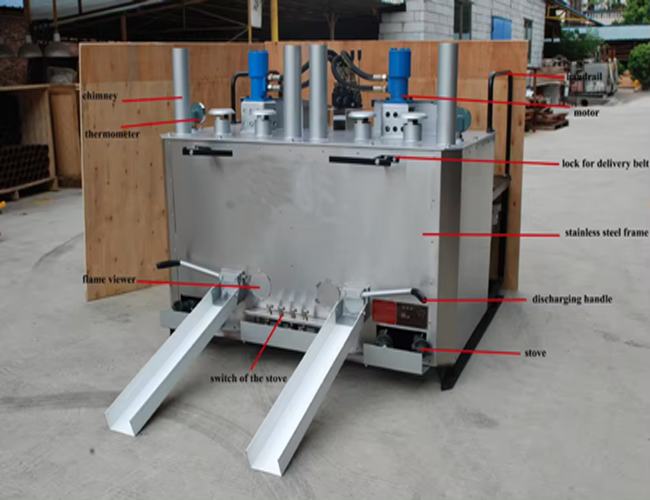

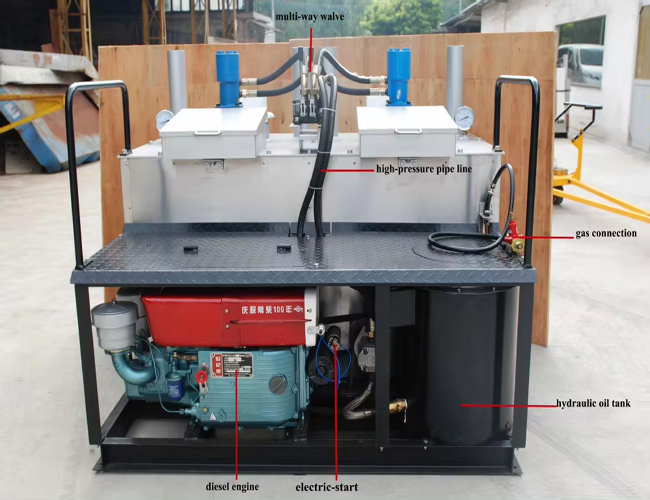

Large Capacity Thermoplastic Kneader / Thermoplastic Hydraulic Preheater Images
